2021 Special Projects

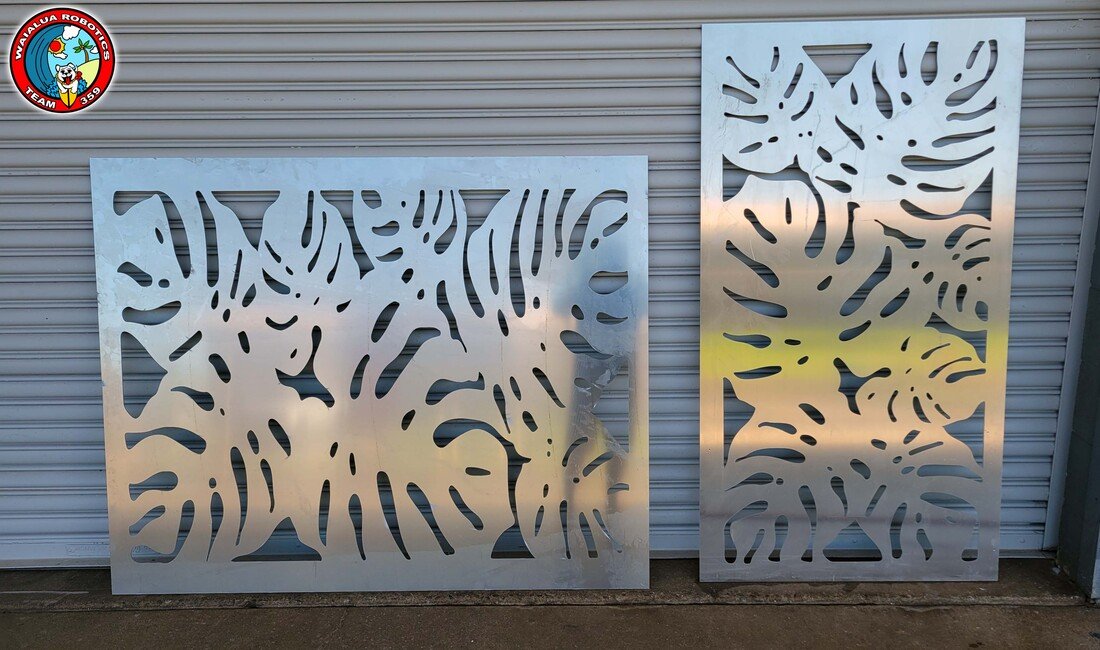

Leaf Waterjet Cutting
12/23/2021
Project Name: Leaf Waterjet Cutting
Client: Coat It Hawaii
Industry: N/A
More Info:
Software Used: CAD 2D, Adobe Illustrator, Flow Path
Materials Used: 1/8" 5000 Series Aluminum
Machines Used: Waterjet
Finishing: N/A
Retirement Plaque
12/20/2021
Project Name: Retirement Plaque.
Client: WHIS
Industry: N/A
More Info: N/A
Software Used: CAD 2D & 3D, Adobe photo shop and Illustrator
Materials Used: Plywood
Machines Used: Laser Engraver, UV Printer
Finishing: Clear Coat, Wet Sanding, Buffing and Polishing
Custom Oahu Junior Golf Association 2021 H2 Jr. Open Trophy
12/14/2021
Project Name: 8 Custom Oahu Junior Golf Association 2021 H2 Jr. Open Trophies
Client: Oahu Junior Golf Association
Industry: Graphic Design, Arts & Craft
More Info:
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop, Flow Cut & Path
Materials Used: .25" Plywood, Mahogany Wood and #8 & #6 screws
Machines Used: Laser Engraver, UV Printer, Rotary Buffer
Finishing: Teak Oil and Clear Coat

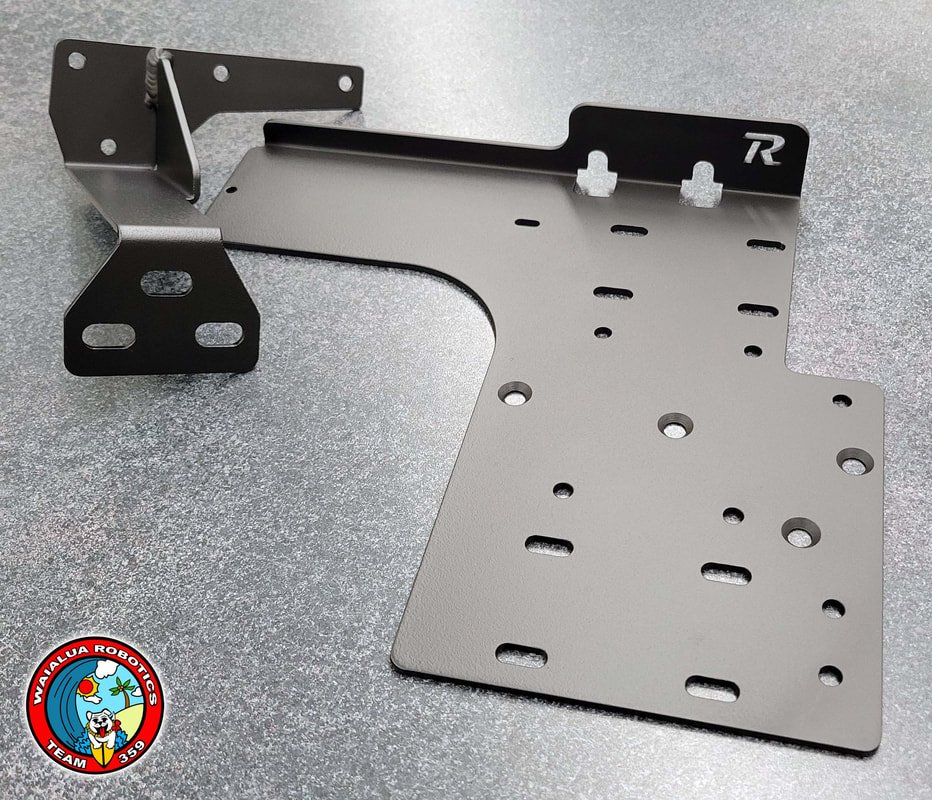

Powder Coat Aluminum Auto Air Compressor Mount
12/14/2021
Project Name: Powder Coat Aluminum Auto Air Compressor Mount
Client: Associate
Industry: Automotive (5th Gen 4Runner)
More Info: N/A
Materials Used: Aluminum
Machines Used: Sand Blaster, Oven
Finishing: Satin Black Powder Coating
Toyota Camry 2020 LE 4dr 4cyl Catalytic Converter Security Shield
12/09/2021
Project Name: Toyota Camry 2020 LE 4dr 4cyl Catalytic Converter Security Shield
Client: Toyota CAMRY Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts
Machines Used: Master 3D Gage CMM machine, Waterjet
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see

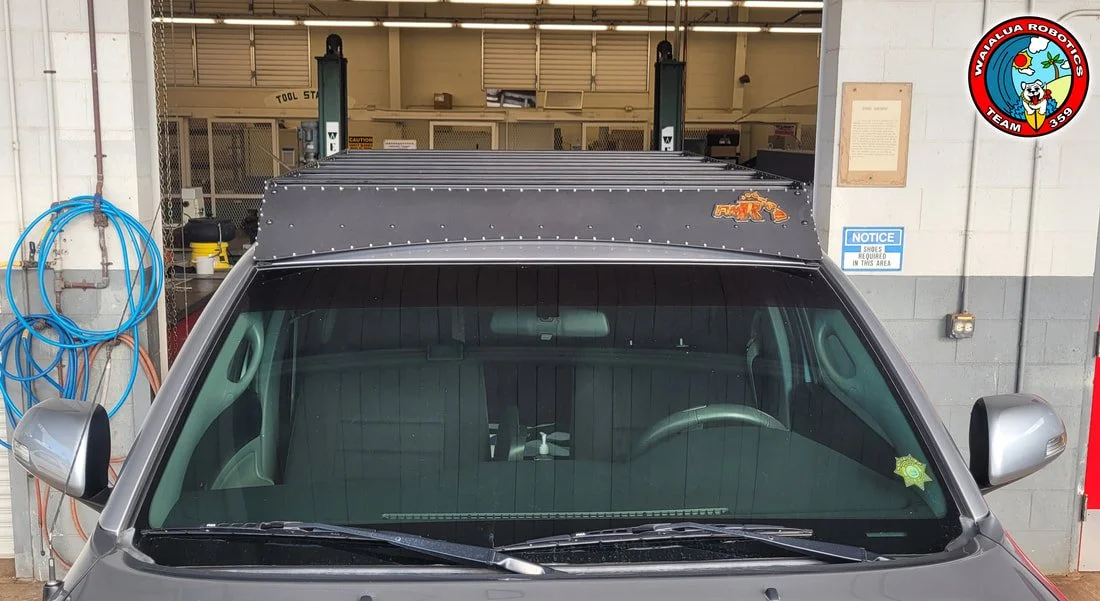

Custom Premium Hawaii Overland Style Roof Rack 7 & Custom Light Weight Skeleton Step Rails
12/06/2021
Project Name: Custom Premium Hawaii Overland Style Tacoma GEN1 2-Door Xtra Cab Roof Rack & Custom Light Weight Skeleton Step Rails
Client: N/A
Brand Name: FWR stands for Friends of Waialua Robotics
Industry: Automotive
More Info: N/A
Software Used: CAD 2D & 3D, CAM Software, Adobe Photoshop & Illustrator, Flow CNC Path & Cut, Verisurf Metrology
Materials Used: 6061-T6 Aluminum Angle, Rods & Plate, Stainless Steel Screws/Bolts/Nylon-Insert Hex Locknuts/Flat & Lock Washers, Satin Black Powder Coat, 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts
Machines Used: WaterJet, Drill Press, Lathe, CNC Mill, Master 3D Gage- Portable CMM, Horizontal Band Saw, Tapping Machine, Vibrator Deburrer, Powder Coating Oven & Gun, Laser Engraver, Airbrush, cordless drill, box and pan brake
Finishing: Powder Coating & Clear Coating
Video Clip: Click here to see
North Shore VEX-IQ Tournament Trophy
12/06/2021
Project Name: North Shore VEX-IQ Tournament Trophy 2021
Client: Waialua Robotics
Industry: Robotics
More Info: n/a
Software Used: CAD 2D & 3D, Adobe Photoshop, Adobe Illustrator
Materials Used: Acrylic
Machines Used: Laser Engraver, UV Printer
Finishing: N/A
Stainless Steel Boat Drain Covers
10/29/2021
Project Name: Stainless Steel Boat Drain Covers
Client: Abunai Boat
Industry: Fishing
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut
Materials Used: 1/4" 316 stainless steel plate
Machines Used: Waterjet
Finishing: N/A
Custom 1-Cavity Sinker Mold
10/29/2021
Project Name: Custom 1 Cavity Sinker Do-it Aluminum Mold
Client: AL- Oahu
Industry: Fishing
More Info: Custom design and CNC cut Do-it Standard Frame blank aluminum mold.
Software Used: CAD 2D & 3D, CAM software
Materials Used: Do-it blank standard aluminum mold
Machines Used: CNC Mill, Drill Press
Toyota Tacoma 2nd Generation (2005-2015) Catalytic Converter Security Shield
10/21/2021
Project Name: Toyota Tacoma 2nd Generation (2005-2015) Catalytic Converter Security Shield
Client: 2nd Gen Tacoma Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts
Machines Used: Master 3D Gage CMM machine, Waterjet, cordless drill, deburring machine, box and pan brake
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see
Toyota Tundra 3rd Generation (2021-Present) Automatic Transmission Catalytic Converter Security Shield
10/13/2021
Project Name: Toyota Tundra 3rd Generation (2021-Present) Automatic Transmission Catalytic Converter Security Shield
Client: 3rd Gen Tundra Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts
Machines Used: Master 3D Gage CMM machine, Waterjet, cordless drill, deburring machine, box and pan brake
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see
Toyota Prius 3rd Generation (2010-2015) Catalytic Converter Security Shield
09/28/2021
Project Name: Toyota Prius 3rd Generation (2010-2015) Catalytic Converter Security Shield
Client: 3rd Generation Prius Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts & hex nuts, spacers
Machines Used: Master 3D Gage CMM machine, Waterjet, cordless drill, deburring machine
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see
Toyota Tacoma 2nd Generation (2005-2015) Base 2wd 4Cyl Automatic 2Dr Extended Cab Catalytic Converter Security Shield
09/28/2021
Project Name: Toyota Tacoma 2nd Generation (2005-2015) Base 2wd 4Cyl Automatic 2Dr Extended Cab Catalytic Converter Security Shield
Client: 2nd Gen Tacoma Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts
Machines Used: Master 3D Gage CMM machine, Waterjet, cordless drill, deburring machine, box and pan brake
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see
Custom Laser Engraved Articans
08/19/2021
Project Name: Custom Laser Engraved Articans, SLIM top and STANDARD bottom
Client: REP
Industry: N/A
More Info:
Software Used: Adobe Illustrator
Materials Used: N/A
Machines Used: Laser Engraver
Finishing: N/A
Rose Waterjet Cutting
07/31/2021
Project Name: Rose Waterjet Cutting
Client: Coat It Hawaii
Industry: N/A
More Info:
Software Used: CAD 2D, Adobe Illustrator, Flow Path
Materials Used: 3/16" 5000 Series Aluminum
Machines Used: Waterjet
Finishing: N/A
Toyota Tundra 2nd Generation (2008-2020) Automatic Transmission Catalytic Converter Security Shield
07/31/2021
Project Name: Toyota Tundra 2nd Generation (2008-2020) Automatic Transmission Catalytic Converter Security Shield
Client: 2nd Gen Tundra Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts
Machines Used: Master 3D Gage CMM machine, Waterjet, cordless drill, deburring machine, box and pan brake
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see
92 Custom 4" Wood Planter Boxes
07/24/2021
Project Name: 92 Custom 4" Wood Planter Boxes
Client: WHIS
Industry: Graphic Design, Arts & Craft
More Info:
Software Used: CAD 2d & 3D, Adobe Photo Shop & Illustrator
Materials Used: .125" Mahogany Plywood, Super Glue
Machines Used: Laser Engraver, Palm Sander
Finishing: Fine Sanding
Custom Wall Mount Paper Roll Dispenser
07/15/2021
Project Name: Custom Wall Mount Paper Roll Dispenser
Client: WHIS Student Activities Room
Industry: Graphic Design, Arts & Craft
More Info:
Software Used:
Materials Used: 1.25" x 1.25" x .125" steel square tube, 1" x 4" treated wood, 10-32 screws
Machines Used: Mill, horizontal bandsaw, drill press
Finishing: Spray Paint
8 Custom Oahu Junior Golf Association 2021 Pearl Jr. Open Trophies
07/15/2021
Project Name: 8 Custom Oahu Junior Golf Association 2021 Pearl Jr. Open Trophies
Client: Oahu Junior Golf Association
Industry: Graphic Design, Arts & Craft
More Info:
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop, Flow Cut & Path
Materials Used: .125" Clear Acrylic Panel, mahogany wood, plywood, .25 acrylic spacers and #8 & #6 screws
Machines Used: Water Jet, Drill Press, Laser Engraver, UV Printer
Finishing: Teak Oil and Stain
Toyota 4Runner 5th Generation (2010-Present) Automatic Transmission Catalytic Converter Security Shield
07/14/2021
Project Name: Toyota 4Runner 5th Generation (2010-Present) Automatic Transmission Catalytic Converter Security Shield
Client: 5th Gen 4Runner Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts
Machines Used: Master 3D Gage CMM machine, Waterjet, cordless drill, deburring machine, box and pan brake
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see
Custom Premium Hawaii Overland Style Roof Rack 6 & 3rd Generation Toyota Tacoma Catalytic Converter Security Shield
07/12/2021
Project Name: Custom Premium Hawaii Overland Style Tacoma GEN3 4-Door Roof Rack & 3rd Generation Toyota Tacoma Catalytic Converter Security Shield
Client: N/A
Brand Name: FWR stands for Friends of Waialua Robotics
Industry: Automotive
More Info: N/A
Software Used: CAD 2D & 3D, CAM Software, Adobe Photoshop & Illustrator, Flow CNC Path & Cut, Verisurf Metrology
Materials Used: 6061-T6 Aluminum Angle, Rods & Plate, Stainless Steel Screws/Bolts/Nylon-Insert Hex Locknuts/Flat & Lock Washers, Satin Black Powder Coat, 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts
Machines Used: WaterJet, Drill Press, Lathe, CNC Mill, Master 3D Gage- Portable CMM, Horizontal Band Saw, Tapping Machine, Vibrator Deburrer, Powder Coating Oven & Gun, Laser Engraver, cordless drill, box and pan brake
Finishing: Prepping for Powder Coating & Badge Clear Coating
News Story: News story featured on KITV 4 News click here to see

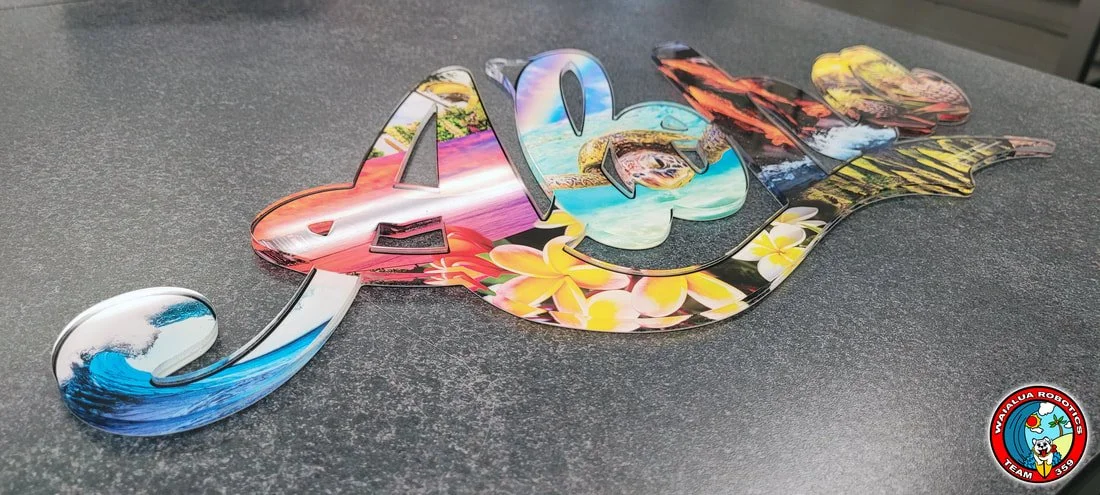

Custom 12.5" "Aloha" Cutout Wall Signs
07/11/2021
Project Name: Custom 12.5" "Aloha" Cutout Wall Signs
Client: N/A
Industry: Graphic Arts & Craft
More Info: Digital Design & photos by Shane Myers, printing and production of sign by Waialua Robotics.
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop
Materials Used: .125" Clear Acrylic Panel & .25" Plywood
Machines Used: Laser Engraver, UV Printer
Finishing: N/A
Toyota Tacoma 3rd Generation (2016-Present) Catalytic Converter Security Shield
07/08/2021
Project Name: Toyota Tacoma 3rd Generation (2016-Present) Catalytic Converter Security Shield
Client: 3rd Gen Tacoma Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts
Machines Used: Master 3D Gage CMM machine, Waterjet, cordless drill, deburring machine, box and pan brake
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see
Friends Of Hawaii Robotics Custom Plaque
07/02/2021
Project Name: Friends Of Hawaii Robotics Custom Plaque
Client: Friends Of Hawaii Robotics
Industry: Graphic Arts & Craft
More Info: N/A
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop
Materials Used: .125" Clear Acrylic Panel, wooden plaque, #8 screws
Machines Used: Laser Engraver, UV Printer
Finishing: N/A
Toyota Prius 4th Generation (2016-Present) & Prius Prime Catalytic Converter Security Shield
07/01/2021
Project Name: Toyota Prius 4th Generation (2016-Present) & Prius Prime Catalytic Converter Security Shield
Client: 4th Gen Prius & Prius Prime Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware & spacers
Machines Used: Master 3D Gage CMM machine, Waterjet, cordless drill, deburring machine
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see
Toyota Prius v Catalytic Converter Security Shield
06/30/2021
Project Name: Toyota Prius v Catalytic Converter Security Shield
Client: Prius v Owners
Industry: Automotive
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut, Verisurf Metrology Software
Materials Used: 1/16" 304 stainless steel plate, cordless drill/driver, hardware; screws, nutserts & hex nuts, spacers
Machines Used: Master 3D Gage CMM machine, Waterjet, cordless drill, deburring machine
Finishing: N/A
News Story: News story featured on KITV 4 News click here to see
Test UV Print on Golf Balls
05/28/2021
Project Name: Test UV Print on Golf Balls
Client: N/A
Industry: N/A
More Info: N/A
Software Used: Adobe Illustrator & Photo Shop
Materials Used: N/A
Machines Used: UV Printer
Finishing: N/A
Test UV Print on Flask
05/28/2021
Project Name: Test UV Print on Flask
Client: N/A
Industry: N/A
More Info: N/A
Software Used: Adobe Illustrator & Photo Shop
Materials Used: N/A
Machines Used: UV Printer
Finishing: N/A
Custom Laser Engraved Tumblers
05/17/2021
Project Name: Custom Laser Engraved Tumblers
Client: REP
Industry: N/A
More Info:
Software Used: Adobe Illustrator
Materials Used: N/A
Machines Used: Laser Engraver
Finishing: N/A
Flaming “L”
05/05/2021
Project Name: Flaming "L"
Client: Leilehua High School
Industry: N/A
More Info:
Software Used: CAD 2D & 3D, Flow Path & Cut
Materials Used: 2x4 wood, steel rectangle bars, steel pipe, wood screws
Machines Used: Waterjet, lathe, horizontal bandsaw, mig welder, high speed grinder, cordless drill, radial chop saw, vertical bandsaw
Finishing: N/A
2X Heavy Duty 9-Count Fixed Blade SPAM Slicer
04/20/2021
Project Name: 2X Heavy Duty 9-Count Fixed Blade SPAM Slicer
Client: Hawaiian Fresh Seafood
Industry: Food Service
More Info: 9-count SPAM slicer that consistently cuts SPAM thickness and is faster than a single blade cutter
Video Clip: Click here to see a short video clip of both SPAM Slicer cutters in action.
Software Used: CAD 2D & 3D, CAM Software, Flow CNC Path & Cut
Materials Used: 316 Stainless Steel, UHMW Plastic, Delrin and 316 Stainless Steel Screws
Machines Used: WaterJet, Drill Press, Lathe, CNC Mill, Tormek T-8 Sharpening System, Tapping Machine
Finishing: Step Sanding, Wet Sanding, Deburring
"North Shore" Acrylic Cutout Sign Plaque
04/19/2021
Project Name: Custom "North Shore" Acrylic Cutout Plaque
Client: N/A
Industry: Graphic Arts & Craft
More Info: Design & photos by Shane Myers
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop
Materials Used: .1875" Clear Acrylic Panel, plywood, standoffs and #8 screws
Machines Used: Laser Engraver, DA Sander, UV Printer
Finishing: Teak Oil and Stain
5 Cavity Custom Lure Weight Aluminum Mold
04/10/2021
Project Name: 5-Cavity Lure Weight Do-it Aluminum Mold
Client: IL- Big Island
Industry: Fishing
More Info: Custom design and CNC cut Do-it (3416) large blank aluminum mold.
Software Used: CAD 2D & 3D, CAM software
Materials Used: Do-it blank large aluminum mold, 8-32 flat head screws
Machines Used: CNC Mill, Drill Press, Deburring & Tap Machine
Custom 7-Cavity Lure Head Lead Insert Mold
04/03/2021
Project Name: Custom 7-Cavity Lure Head Lead Insert Mold
Client: Tsutomu Lures Hawaii
Industry: Fishing
More Info: n/a
Software Used: CAD 2D & 3D, Cam Software
Materials Used: Aluminum & wood
Machines Used: CNC Mill, Drill Press, Vertical Bandsaw, Tapping machine,
Finishing: Step Sanding
Prototype Hydrofoil Surfing Tail Stab Wing II
03/20/2021
Project Name: Prototype Hydrofoil Surfing Tail Stab Wing II.
Client: HB
Industry: Water Sports & Recreation
More Info: N/A
Software Used: CAD 2D & 3D
Materials Used: G10 Fiberglass Composite
Machines Used: CNC Mill
Finishing: N/A (rough cut only)
Prototype Hydrofoil Surfing Fuselage
03/20/2021
Project Name: Prototype Hydrofoil Surfing Fuselage.
Client: HB
Industry: Water Sports & Recreation
More Info: N/A
Software Used: CAD 2D & 3D
Materials Used: G10 Fiberglass Composite
Machines Used: CNC Mill
Finishing: N/A (rough cut only)
Limited Edition Custom Frame 06
03/20/2021
Project Name: Limited Edition Custom Frame of Hawaii Magazine 2021 Grand Prize Award Winning Photo "Tako Sauce" by Shane Myers
Frame Shown: 22"x14.667", UV Printed Patina Design
Industry: Graphic Arts & Craft
More Info: Each custom frame is uniquely numbered, award winning photo by Shane Myers "Tako Sauce" printed on high quality canvas, are individually autographed by photographer Shane Myers and include wooden title plaques top and bottom.
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop, Flow Path
Materials Used: 1/8" Aluminum Panel, Square Wooden Molding, Mahogany Wood, 1/8" Acrylic Panel, Aluminum Rivets
Machines Used: Water Jet, Vertical Bandsaw, TIG Welder, Cordless Drill, Powered Pop Rivet Installation Tool, DA Sander, Rotary Sander, 3D-Printer, Laser Engraver, Wide Format Printer, Drum Sander
Finishing: Step Wet Sanding, Spray Painting, Polishing and Buffing, Teak Oil
Buy: This custom limited edition art piece is for sale, if you are interested in purchasing it click here. Portion of the proceeds support the Waialua Robotics Program.
Limited Edition Custom Frame 05
03/20/2021
Project Name: Limited Edition Custom Frame of Hawaii Magazine 2021 Grand Prize Award Winning Photo "Tako Sauce" by Shane Myers
Frame Shown: 21.612"x17.628", Black with White/Silver & Metallic Blue Abstract Airbrush Design
Industry: Graphic Arts & Craft
More Info: Each custom frame is uniquely numbered, award winning photo by Shane Myers "Tako Sauce" printed on high quality canvas, are individually autographed by photographer Shane Myers and include wooden title plaques top and bottom.
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop, Flow Path
Materials Used: 1/8" Aluminum Panel, Square Wooden Molding, Mahogany Wood, 1/8" Acrylic Panel, Aluminum Rivets
Machines Used: Water Jet, Vertical Bandsaw, TIG Welder, Cordless Drill, Powered Pop Rivet Installation Tool, DA Sander, Rotary Sander, 3D-Printer, Laser Engraver, Wide Format Printer, Drum Sander
Finishing: Step Wet Sanding, Spray Painting, Custom Airbrushing, Polishing and Buffing, Teak Oil
Buy: This custom limited edition art piece is for sale, if you are interested in purchasing it click here. Portion of the proceeds support the Waialua Robotics Program.
Limited Edition Custom Frame 04
03/20/2021
Project Name: Limited Edition Custom Frame of Hawaii Magazine 2021 Grand Prize Award Winning Photo "Tako Sauce" by Shane Myers
Frame Shown: 21.612"x17.628", Black
Industry: Graphic Arts & Craft
More Info: Each custom frame is uniquely numbered, award winning photo by Shane Myers "Tako Sauce" printed on high quality canvas, are individually autographed by photographer Shane Myers and include wooden title plaques top and bottom.
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop, Flow Path
Materials Used: 1/8" Aluminum Panel, Square Wooden Molding, Mahogany Wood, 1/8" Acrylic Panel, Aluminum Rivets
Machines Used: Water Jet, Vertical Bandsaw, TIG Welder, Cordless Drill, Powered Pop Rivet Installation Tool, DA Sander, Rotary Sander, 3D-Printer, Laser Engraver, Wide Format Printer, Drum Sander
Finishing: Step Wet Sanding, Spray Painting, Polishing and Buffing, Teak Oil
Buy: This custom limited edition art piece is for sale, if you are interested in purchasing it click here. Portion of the proceeds support the Waialua Robotics Program.
Limited Edition Custom Frame 03
03/20/2021
Project Name: Limited Edition Custom Frame of Hawaii Magazine 2021 Grand Prize Award Winning Photo "Tako Sauce" by Shane Myers
Frame Shown: 21.612"x17.628", Black with White/Silver & Metallic Blue Abstract Airbrush Design
Industry: Graphic Arts & Craft
More Info: Each custom frame is uniquely numbered, award winning photo by Shane Myers "Tako Sauce" printed on high quality canvas, are individually autographed by photographer Shane Myers and include wooden title plaques top and bottom.
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop, Flow Path
Materials Used: 1/8" Aluminum Panel, Square Wooden Molding, Mahogany Wood, 1/8" Acrylic Panel, Aluminum Rivets
Machines Used: Water Jet, Vertical Bandsaw, TIG Welder, Cordless Drill, Powered Pop Rivet Installation Tool, DA Sander, Rotary Sander, 3D-Printer, Laser Engraver, Wide Format Printer, Drum Sander
Finishing: Step Wet Sanding, Spray Painting, Custom Airbrushing, Polishing and Buffing, Teak Oil
Buy: This custom limited edition art piece is for sale, if you are interested in purchasing it click here. Portion of the proceeds support the Waialua Robotics Program.
Custom Premium Hawaii Overland Style Roof Rack 5
03/19/2021
Project Name: Custom Premium Hawaii Overland Style Tacoma GEN2 4-Door Roof Rack
Client: N/A
Brand Name: FWR stands for Friends of Waialua Robotics
Industry: Automotive
More Info: N/A
Software Used: CAD 2D & 3D, CAM Software, Adobe Photoshop & Illustrator, Flow CNC Path & Cut, Verisurf Metrology
Materials Used: 6061-T6 Aluminum Angle, Rods & Plate, Stainless Steel Screws/Bolts/Nylon-Insert Hex Locknuts/Flat & Lock Washers, Satin Black Powder Coat
Machines Used: WaterJet, Drill Press, Lathe, CNC Mill, Master 3D Gage- Portable CMM, Horizontal Band Saw, Tapping Machine, Vibrator Deburrer, Powder Coating Oven & Gun, Laser Engraver.
Finishing: Prepping for Powder Coating & Badge Clear Coating
Video Clip: click here
PPE Office Window Spray Shield
03/12/2021
Project Name: PPE Office Window Spray Shield
Client: WHIS Administration Office
Industry: Safety/Medical
More Info: N/A
Software Used: CAD 2D & 3D
Materials Used: Clear Vinyl Sheet, Hook -n- Loop Sticky Back
Machines Used: N/A
Finishing: N/A
BUY: Want to see more or purchase click here.
"Aloha" Acrylic Cutout Sign
03/12/2021
Project Name: Custom "Aloha" Acrylic Cutout Sign
Client: N/A
Industry: Graphic Arts & Craft
More Info: Digital Design & photos by Shane Myers, printing and production of sign by Waialua Robotics.
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop
Materials Used: .25" Clear Acrylic Panel
Machines Used: Laser Engraver, DA Sander, UV Printer
Finishing: Wet Sanding and Polishing
PPE Desk Top Spray Shield
02/22/2021
Project Name: PPE Desk Top Spray Shield
Client: WHIS Administration Office
Industry: Safety/Medical
More Info: N/A
Software Used: CAD 2D & 3D
Materials Used: Clear Vinyl Sheet, Elastic, Carbon Fiber Tubes, Grommets & 3D-Printer PLA Filament
Machines Used: 3d-Printer, Band Saw, Cordless Drill, Bench Top Deburrer
Finishing: Deburring
BUY: Want to see more or purchase click here.
Custom Belt Buckles
02/17/2021
Project Name: Custom Belt Buckles
Client: NB
Industry: Arts & Crafts
More Info: N/A
Software Used: CAD 2D & 3D, Flow Path & Cut, Adobe Photoshop & Illustrator
Materials Used: Koa Wood, Oak Wood, Aluminum, Stainless Steel Rods, Stainless Steel Screws
Machines Used: Waterjet, Mill, Tapping Machine, Brake, Tumbler, Cordless Drill, Laser Engraver, DA Sander, Drum Sander, Oxy-Acetylene Torch
Finishing: Teak Oil and Tumbler
Basket Weaving Leaf Stripper
02/13/2021
Project Name: Custom Belt Buckles
Client: NB
Industry: Arts & Crafts
More Info: N/A
Software Used: CAD 2D & 3D, Flow Path & Cut, Adobe Photoshop & Illustrator
Materials Used: Koa Wood, Oak Wood, Aluminum, Stainless Steel Rods, Stainless Steel Screws
Machines Used: Waterjet, Mill, Tapping Machine, Brake, Tumbler, Cordless Drill, Laser Engraver, DA Sander, Drum Sander, Oxy-Acetylene Torch
Finishing: Teak Oil and Tumbler
Portable PPE Table Top "U-SHAPE" Spray Shield
02/13/2021
Project Name: PPE Spray Shield
Client: N/A
Industry: Safety/Medical
More Info: N/A
Software Used: CAD 2D & 3D
Materials Used: Clear Vinyl Sheet, Elastic, Carbon Fiber Tubes, Grommets & 3D-Printer PLA Filament
Machines Used: 3d-Printer, Band Saw, Cordless Drill, Bench Top Deburrer
Finishing: Deburring
BUY: Want to see more or purchase click here.
Shane Myers "Rainbow Shave Ice" North Shore Metal Cutout Sign
02/09/2021
Project Name: Shane Myers "Rainbow Shave Ice" North Shore Metal Cutout Sign
Client: N/A
Industry: Graphic Arts & Craft
More Info: N/A
Software Used: CAD 2D & 3D, Flow CNC Path & Cut, Adobe Illustrator & Photo Shop
Materials Used: 24 Gauge Sheet Metal
Machines Used: WaterJet, DA Sander, UV Printer, Powder Coating
Finishing: Clear Gloss Polyurethane, Wet Sanding and Polishing
Limited Edition Custom Frame 02
02/04/2021
Limited Edition Custom Frame 01
02/04/2021
Limited Edition Custom Frame 00
02/04/2021
Project Name: Limited Edition Custom Frame of Hawaii Magazine 2021 Grand Prize Award Winning Photo "Tako Sauce" by Shane Myers
Frame Shown: 30"x20" Print, Gloss Black
Industry: Graphic Arts & Craft
More Info: Each custom frame is uniquely numbered, award winning photo by Shane Myers "Tako Sauce" printed on high quality canvas, are individually autographed by photographer Shane Myers and include wooden title plaques top and bottom.
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop, Flow Path
Materials Used: 1/8" Aluminum Panel, Square Wooden Molding, Mahogany Wood, 1/8" Acrylic Panel, Aluminum Rivets
Machines Used: Water Jet, Vertical Bandsaw, TIG Welder, Cordless Drill, Powered Pop Rivet Installation Tool, DA Sander, Rotary Sander, 3D-Printer, Laser Engraver, Wide Format Printer, Drum Sander
Finishing: Step Wet Sanding, Spray Painting, Custom Airbrushing*, Polishing and Buffing, Teak Oil
*does not apply to all frames
Hawaii Magazine 2021 Grand Prize Award Winning Photo "Tako Sauce" by Shane Myers
01/25/2021
Custom Premium Hawaii Overland Style Roof Rack 4
01/21/2021
Project Name: Custom Premium Hawaii Overland Style Tacoma GEN2 4-Door Roof Rack
Client: N/A
Brand Name: FWR stands for Friends of Waialua Robotics
Industry: Automotive
More Info: N/A
Software Used: CAD 2D & 3D, CAM Software, Adobe Photoshop & Illustrator, Flow CNC Path & Cut, Verisurf Metrology
Materials Used: 6061-T6 Aluminum Angle, Rods & Plate, Stainless Steel Screws/Bolts/Nylon-Insert Hex Locknuts/Flat & Lock Washers, Satin Black Powder Coat
Machines Used: WaterJet, Drill Press, Lathe, CNC Mill, Master 3D Gage- Portable CMM, Horizontal Band Saw, Tapping Machine, Vibrator Deburrer, Powder Coating Oven & Gun, Laser Engraver.
Finishing: Prepping for Powder Coating & Badge Clear Coating
Video Clip: click here
3D (2-Plane) Photo Print
01/19/2021
Project Name: PPE Spray Shield
Client: N/A
Industry: Safety/Medical
More Info: N/A
Software Used: CAD 2D & 3D
Materials Used: Clear Vinyl Sheet, Elastic, Carbon Fiber Tubes, Grommets & 3D-Printer PLA Filament
Machines Used: 3d-Printer, Band Saw, Cordless Drill, Bench Top Deburrer
Finishing: Deburring
BUY: Want to see more or purchase click here.
North Shore Metal Cutout Sign
01/19/2021
Project Name: Metal Cutout Sign
Client: N/A
Industry: Graphic Arts & Craft
More Info: N/A
Software Used: CAD 2D & 3D, Flow CNC Path & Cut, Adobe Illustrator & Photo Shop
Materials Used: 24 Gauge Sheet Metal
Machines Used: WaterJet, DA Sander, UV Printer, Powder Coating
Finishing: Clear Gloss Polyurethane, Wet Sanding and Polishing
Pot Thermometer Holder Bracket
01/19/2021
Project Name: Custom Round Pot Thermometer Holder Bracket
Client: Sweet Brown Hawaii
Industry: Food Service
More Info: N/A
Software Used: CAD 2D & 3D, Flow CNC Path & Cut
Materials Used: 304 .048" Stainless Steel Sheet
Machines Used: WaterJet, Manual Brake
Finishing: Vibrator Deburrer
Project Name: Limited Edition Custom Frame of Hawaii Magazine 2021 Grand Prize Award Winning Photo "Tako Sauce" by Shane Myers
Frame Shown: 20"x16" Print, Black with White/Silver & Metallic Blue True Fire Airbrush Design
Industry: Graphic Arts & Craft
More Info: Each custom frame is uniquely numbered, award winning photo by Shane Myers "Tako Sauce" printed on high quality canvas, are individually autographed by photographer Shane Myers and include wooden title plaques top and bottom.
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop, Flow Path
Materials Used: 1/8" Aluminum Panel, Square Wooden Molding, Mahogany Wood, 1/8" Acrylic Panel, Aluminum Rivets
Machines Used: Water Jet, Vertical Bandsaw, TIG Welder, Cordless Drill, Powered Pop Rivet Installation Tool, DA Sander, Rotary Sander, 3D-Printer, Laser Engraver, Wide Format Printer, Drum Sander
Finishing: Step Wet Sanding, Spray Painting, Custom Airbrushing*, Polishing and Buffing, Teak Oil
*does not apply to all frames
Project Name: Limited Edition Custom Frame of Hawaii Magazine 2021 Grand Prize Award Winning Photo "Tako Sauce" by Shane Myers
Frame Shown: 30"x20" Print, Metallic Blue with White & Silver True Fire Airbrush
Industry: Graphic Arts & Craft
More Info: Each custom frame is uniquely numbered, award winning photo by Shane Myers "Tako Sauce" printed on high quality canvas, are individually autographed by photographer Shane Myers and include wooden title plaques top and bottom.
Software Used: CAD 2D & 3D, Adobe Illustrator & Photo Shop, Flow Path
Materials Used: 1/8" Aluminum Panel, Square Wooden Molding, Mahogany Wood, 1/8" Acrylic Panel, Aluminum Rivets
Machines Used: Water Jet, Vertical Bandsaw, TIG Welder, Cordless Drill, Powered Pop Rivet Installation Tool, DA Sander, Rotary Sander, 3D-Printer, Laser Engraver, Wide Format Printer, Drum Sander
Finishing: Step Wet Sanding, Spray Painting, Custom Airbrushing*, Polishing and Buffing, Teak Oil
*does not apply to all frames
Project Name: HQ UV Acrylic Print of Hawaii Magazine 2021 Grand Prize Award Winning Photo "Tako Sauce" by Shane Myers
Client: N/A
Industry: Graphic Arts & Craft
More Info: N/A
Software Used: Adobe Illustrator & Photo Shop
Materials Used: 1/4" Clear Acrylic Panel, Pizazz Multi-Mount Standoff System 0301
Machines Used: UV Printer, Drill Press
Finishing: N/A
